CV7-C is the high speed ultrasonic wind sensor.

The long carbon arm allows the CV7-C sensor to measure the wind further from the disturbance caused by the rigging and sails.
Lightweight: less than 150 gr (arm included).

The CV7-C has a data rate which is twice as fast as the CV7 and CV7-V.
The CV7-C has excellent performance in electromagnetic conditions, often met in offshore races.
CV7-C has been tested at sea in collaboration with famous offshore skippers on mini6.50 and class40 (ERDF- Des Pieds et des Mains, Damien Seguin/ Yoann Richomme).Damien Seguin/ Yoann Richomme).

This sensor can be set up to meet the specific requirements of offshore race boats.
It can be used connected to a PC and to any system featuring a NMEA® input port. We can offer specific interfaces to requirement.
All LCJ Capteurs are designed and manufactured in the Nantes region in France where they are fully tested throughout the manufacturing process.
Process quality

CV7-C technical features

Wiring:

4 wires:
- Red; +12 V DC (9 to 16 V DC, 12mA)
- Blue: 0 V
- Yellow: output NMEA0183 +
- Green: output NMEA0183 -

Measurement range:

Wind speed: 0.25 to 80 knots
Wind angle: 0 to 359°
Temperature: -20°C to +60°C

Measurement sensitivity:

Wind speed: 0.25 knots
Wind angle: +/-1°
Temperature: +/- 1°C

Resolution:

Wind speed: 00,0
Wind angle: 000,0
Temperature: +/-00,0

Operational temperature:

- 15°C (off ice) to +55°C

NMEA0183® sentences used at high speed:

IIMWV: angle, wind speed and checksum
WIXDR: wind temperature
PLCJ: manufacturer data
PLCJE: manufacturer data
Data transmission: 4 messages per second compiling 32 wind measures per second

Complies with European regulations

Logo_CE

CV7-C options and interface compatibility

NMEA0183® - 4800 bauds

FURUNO©, RD30, RD33, Depth-sounders, Radars, NavNet, NavNet2, NavNet3 etc....
GARMIN© all displays featuring a « wind » page and an NMEA0183 input port.
NKE Topline, TL25, GyroPilote, MultiGraph, input port NMEA/Topline
SIMRAD: IS12 MEGA, IS15 Wind, IS15 Expendeur, interface SimNet AT10
Navigation software applications: Adrena, FT NavVision, MaxSea, Noé, OpenCPN, ScanNav, Sodena, StatMETEO, Euronav Seapro

Option CV7-C-Sil:

This option can be supplied with the original pack or installed afterwards by a simple software update via our "configCV7" application
- Furuno© FI30 : Wind Data FI301, Server FI30
- SILVA©/ NEXUS© : Wind Data NX2, Server NX2

Option CV7-C-BG :

B&G©, BandG©, Brooks and Gatehouse©: Hercules, Hydra, Network, H1000, H2000, H3000.
CV7-BG for all B&G© systems is available by adding a "Black-Box" interface.

Option CV7-C-CanBus :

CV7-C Canbus is compatible with NMEA2000® systems featuring a wind functions page.
The CanBus option includes a barometer (suitable for systems featuring a barometer functions page).
This option is available by adding a "Black-Box" interface.
These instruments have been tested with the CV7-Canbus:
B&G© : Triton.
Furuno©: FI50, RD33, NavNet2, NavNet3.
Garmin© : GMI10 (whole range).
Raymarine©: i70.
Simrad© : whole range.

Option CV7-C-RM:

CV7-C-RM for sailboats with rotating mast.
CV7-C-RM allows connecting the CV7 mast head sensor to any NMEA2000® compatible instruments.

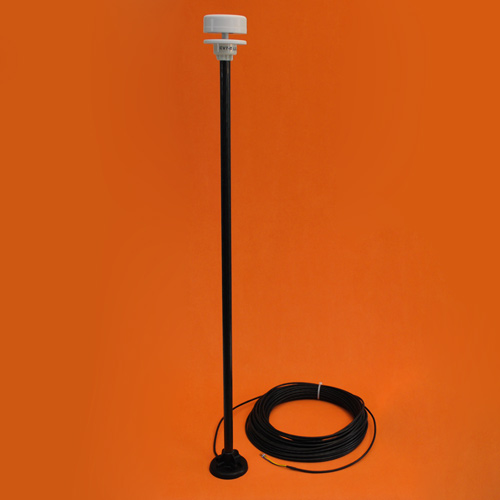

CV7-C ultrasonic wind sensor pack:

The CV7-C pack includes:

- CV7-C sensor with 70 cm vertical carbon arm
- Mounting bracket
- 25 m cable 4X 0,22mm²
- Installation and operation manual
- 2 years guaranty parts and labour at our premises

CV7-C recommended retail price:

779,00 Euros inc. tax.

Where to buy:

Ask for the LCJ Capteurs product of your choice at your local chandlery.
Several distributors carry stock of our products:
UK: Mantsbrite, www.mantsbrite.com
Germany: ELNA, www.elna.de
Finland: John Nurminen marine, www.johnnurminenmarine.com
Island: Velasalan ehf., www.velasalan.is, www.taeknivik.is

France: Big-Ship, Furuno-France, Ixelek , Navicom, Pochon S.A., Robin-Marine
